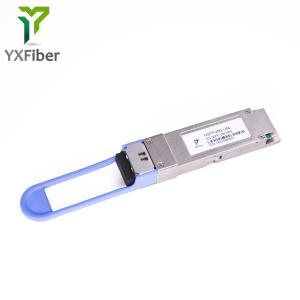

LR4 Transceiver FTTX 1310nm 10km 40G QSFP+ Transceiver

Name: LR4 Transceiver FTTX 1310nm 10km 40G QSFP Transceiver
Brand: YXFiber
Price: 100.00 USD

China LR4 Transceiver FTTX 1310nm 10km 40G QSFP+ Transceiver factory

Place of Origin : Hubei, China

Brand Name : YXFiber

Model Number : QSFP-40G-LR4

Certification : CE RoHS FCC

MOQ : 1pcs

Price : $100.00

Packaging Details : 10pcs in Plastic tray

Delivery Time : 1~3working days after payment

Payment Terms : T/T

Supply Ability : 100000pcs per month

Type : Fiber Optic Transceivers

No. of Fiber : 2.

Use : FTTX

Supply Voltage : 3.3V

Power : 3~-7dBm

Data rate : 40Gbps

Transmission distance : 10km

Wavelength : 1310nm

Interface : Duplex LC

Fiber Type : SMF

DDMI : Yes

Warranty : 1 Year

Selling Units : Single item

Single package size : 22X21X6 cm

Single gross weight : 0.500 kg

Package Type : 8pcs/ anti-static box.

Contact Now

40G QSFP+ LR4 10km 1310nm LC Connector

Features:

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard.
QSFP+ MSA compliant.
Compliant with QDR/DDR Infiniband data rates.
Up to 11.2Gbps data rate per wavelength.
4 CWDM lanes MUX/DEMUX design.
Up to 10km transmission.
Operating case temperature: 0~70C.
Maximum 3.5W operation power.
RoHS compliant.

Absolute Maximum Ratings:

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter	Symbol	Min	Max	Unit
Storage Temperature	Tst	-20	85	degC
Relative Humidity (non-condensation)	RH	0	85	%
Operating Case Temperature	Topc	0	70	degC
Operating Range	/	0.002	10	km
Supply Voltage	VCC	-0.5	3.6	V

Optical Characteristics:

LR4 Transceiver FTTX 1310nm 10km 40G QSFP+ Transceiver

Applications

LR4 Transceiver FTTX 1310nm 10km 40G QSFP+ Transceiver

Company Profile

LR4 Transceiver FTTX 1310nm 10km 40G QSFP+ Transceiver

Production Flow

LR4 Transceiver FTTX 1310nm 10km 40G QSFP+ Transceiver
