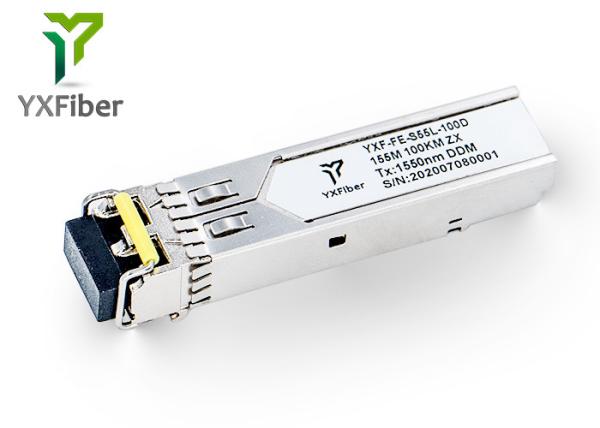

Duplex 100km 1550nm 155M SFP Module LC Connector

Name: Duplex 100km 1550nm 155M SFP Module LC Connector
Brand: YXFiber
Price: 15.00 USD

China Duplex 100km 1550nm 155M SFP Module LC Connector factory

Place of Origin : Hubei, China

Brand Name : YXFiber

Model Number : YXF-FE-S55L-100D

Certification : CE RoHS FCC

MOQ : 1pcs

Price : $15.00

Packaging Details : 10pcs in Plastic tray

Delivery Time : 1~3working days after payment

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Type : Fiber Optic Transceivers

No. of Fiber : 2.

Use : FTTX

Supply Voltage : 3.3V

Power : 3~-5dBm

Data rate : 155M

Wavelength : 1550nm

Transmission distance : 100km

Interface : Duplex LC

Fiber Type : SMF

DDMI : yes

Warranty : 1 year

Selling Units : Single item

Single package size : 22X5X6 cm

Single gross weight : 0.030 kg

Package Type : 10pcs/ anti-static box.

Contact Now

Product Description

155M Duplex 100km 1550nm LC Connector SFP Module

Features

l Up to 100km transmission on SMF
l Up to 155Mbps
l 1550nm DFB laser and PIN receiver
l 2-wire interface for integrated Digital Diagnostic monitoring
l Hot pluggable
l Very low EMI and excellent ESD protection
l +3.3V power supply
l Power consumption less than 1.0W
l Operating case temperature: 0~+70°C

Applications

l High-speed storage area networks
l Computer cluster cross-connect
l Custom high-speed data pipes

Compliance

l Compliant with ITU-T G.957
l Compliant with MSA SFF-8472
l Compliant with SFP MSA

Specification

Technical Parameters	Descriptions	Technical Parameters	Descriptions
Model Number	YXF-FE-S55L-100D	Interface	LC
Fiber type	SMF	Laser/Detector	DFB/PIN
Form Factor	Duplex SFP	DDM	Yes
Data Rate	155Mbps	Output Power	2~-3dBm
Wavelength	1550nm	Power Supply	3.3V
Distance	100KM	Temperature	0~70°C
Sensitivity	<-35.0dBm	Certificate	CE,ROHS,FCC,ISO9001,SGS
Selling Units	Single	Warranty	1Year

Applications

Duplex 100km 1550nm 155M SFP Module LC Connector

Our Advantages

Duplex 100km 1550nm 155M SFP Module LC Connector

155M fiber optic transceiver module

100km Duplex module

155M SFP Module LC Connector

Duplex 100km 1550nm 155M SFP Module LC Connector Images
