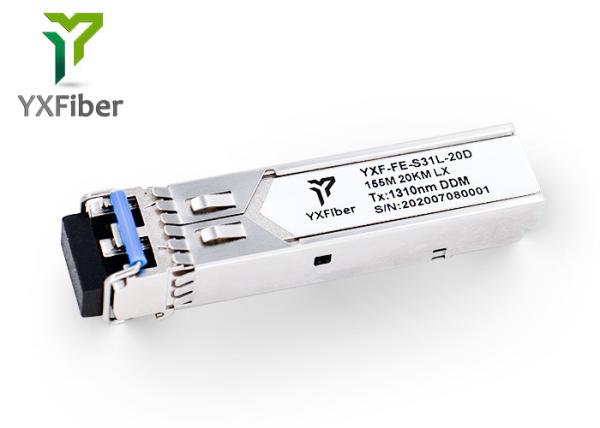

20km 1310nm Duplex LC Connector 155M SFP Optical Fiber Module

Name: 20km 1310nm Duplex LC Connector 155M SFP Optical Fiber Module
Brand: YXFiber
Price: 3.00 USD

China 20km 1310nm Duplex LC Connector 155M SFP Optical Fiber Module factory

Brand Name : YXFiber

Model Number : YXF-FE-S31L-20D

Certification : CE RoHS FCC

Place of Origin : Hubei, China

MOQ : 1pcs

Price : $3.00

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Fiber Optic Transceivers

No. of Fiber : 2.

Use : FTTX

Supply Voltage : 3.3V

Power : 0~-8dBm

Data rate : 155M

Wavelength : 1310nm

Transmission distance : 20km

Interface : Dpluxel LC

Fiber Type : SMF

DDMI : yes

Warranty : 3 years

Selling Units : Single item

Single package size : 22X5X6 cm

Single gross weight : 0.030 kg

Package Type : 10pcs/ anti-static box.

Contact Now

155M Duplex 20km 1310nm LC Connector SFP Module

Features

l Up to 20km transmission on SMF
l Up to 155M
l 1310nm FP laser and PIN receiver
l 2-wire interface for integrated Digital Diagnostic monitoring
l Hot pluggable
l Very low EMI and excellent ESD protection
l +3.3V power supply
l Power consumption less than 1.0W
l Operating case temperature: 0~+70°C

Applications

l High-speed storage area networks
l Computer cluster cross-connect
l Custom high-speed data pipes

Compliance

l Compliant with IEEE 802.3Z
l Compliant with MSA SFF-8472
l Compliant with SFP MSA

Specification

Technical Parameters	Descriptions	Technical Parameters	Descriptions
Model Number	YXF-FE-S31L-20D	Interface	LC
Fiber type	SMF	Laser/Detector	FP/PIN
Form Factor	Duplex SFP	DDM	Yes
Data Rate	155Mbps	Output Power	0~-8dBm
Wavelength	1310nm	Power Supply	3.3V
Distance	20KM	Temperature	0~70°C
Sensitivity	<-33.0dBm	Certificate	CE,ROHS,FCC,ISO9001,SGS
Selling Units	Single	Warranty	1Year

Applications

20km 1310nm Duplex LC Connector 155M SFP Optical Fiber Module

155M SFP Module

20km 1310nm SFP Module

20km 1310nm Duplex LC Connector 155M SFP Optical Fiber Module Images
