LC/SC 155Mbps BIDI 20km SMF 1310/1550nm SFP Module Smf

Product Categories
Wuhan Yongxinfeng Science & Technology Co., Ltd.
Contact Now

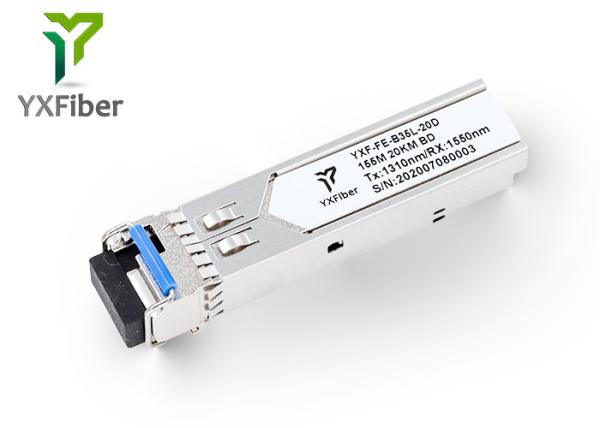

LC/SC 155Mbps BIDI 20km SMF 1310/1550nm SFP Module Smf

  • 1
  • 2
  • 3

Brand Name : YXFiber

Model Number : YXF-FE-B35L-20D

Certification : CE RoHS FCC

Place of Origin : Hubei, China

MOQ : 1pcs

Price : $4~$5.00

Payment Terms : T/T

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Fiber Optic Transceivers

No. of Fiber : 1.

Use : FTTX

Supply Voltage : 3.3V

Power : -8~-15dBm

Data rate : 155M

Wavelength : 1310nm/1550nm

Transmission distance : 20km

Interface : BIDI LC

Fiber Type : SMF

DDMI : yes

Warranty : 1 year

Selling Units : Single item

Single package size  : 22X5X6 cm

Single gross weight : 0.060 kg

Package Type : 10pcs/ anti-static box.

Contact Now

155M BIDI 20km 1310nm/1550nm LC/SC Connector

Features

  • l Up to 20km transmission on SMF
  • l Up to 155Mbps
  • l 1310nm FP laser and PIN receiver
  • l Single LC/SC receptacle optical interface compliant
  • l 2-wire interface for integrated Digital Diagnostic monitoring
  • l Hot pluggable
  • l Very low EMI and excellent ESD protection
  • l +3.3V power supply
  • l Power consumption less than 1.0W
  • l Operating case temperature: 0~+70°C

Applications

  • l High-speed storage area networks
  • l Computer cluster cross-connect
  • l Custom high-speed data pipes

Compliance

  • l Compliant with IEEE802.3ah 100Base-BX
  • l Compliant with MSA SFF-8472
  • l Compliant with SFP MSA


Specification

Technical ParametersDescriptions
Model NumberYXF-FE-B35L-20D
Fiber typeSMF
Form FactorBIDI SFP
Data Rate155Mbps
Wavelength1310/1550nm
Distance20KM
Sensitivity<-32.0dBm
ConnectorLC
Laser/DetectorFP/PIN
DDMYes
Output Power-8~-15dBm
Power Supply3.3V
Temperature0~70°C
CertificateCE,ROHS,FCC,ISO9001,SGS
Warranty1Year
Selling UnitsSingle
Applications

LC/SC 155Mbps BIDI 20km SMF 1310/1550nm SFP Module Smf

Company Profile

LC/SC 155Mbps BIDI 20km SMF 1310/1550nm SFP Module Smf

Production Flow

LC/SC 155Mbps BIDI 20km SMF 1310/1550nm SFP Module Smf
